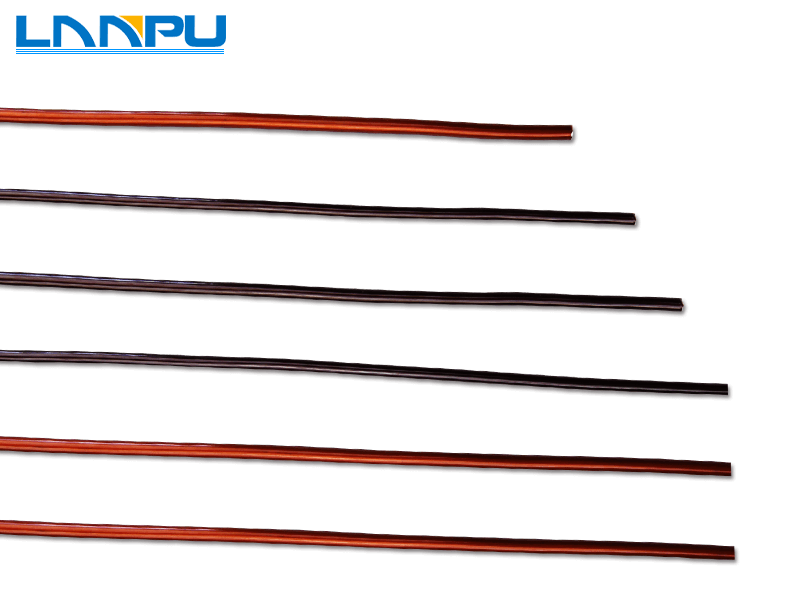

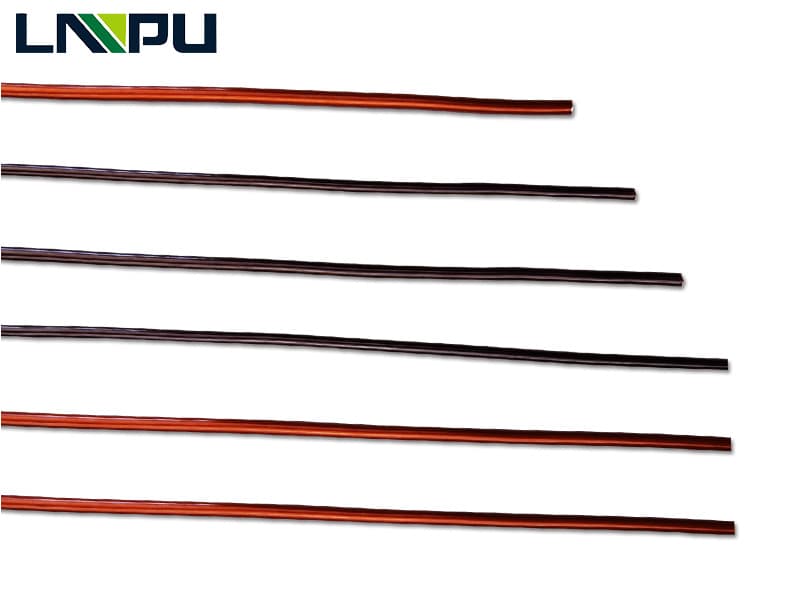

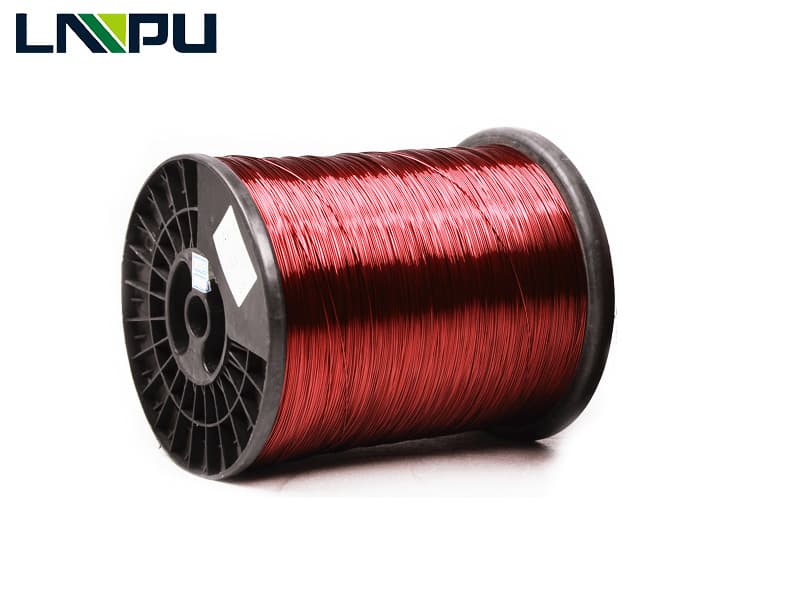

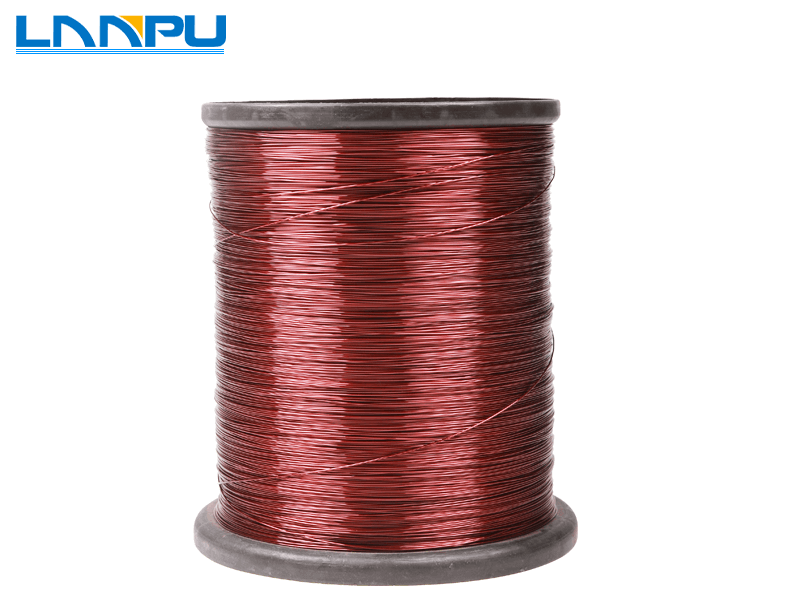

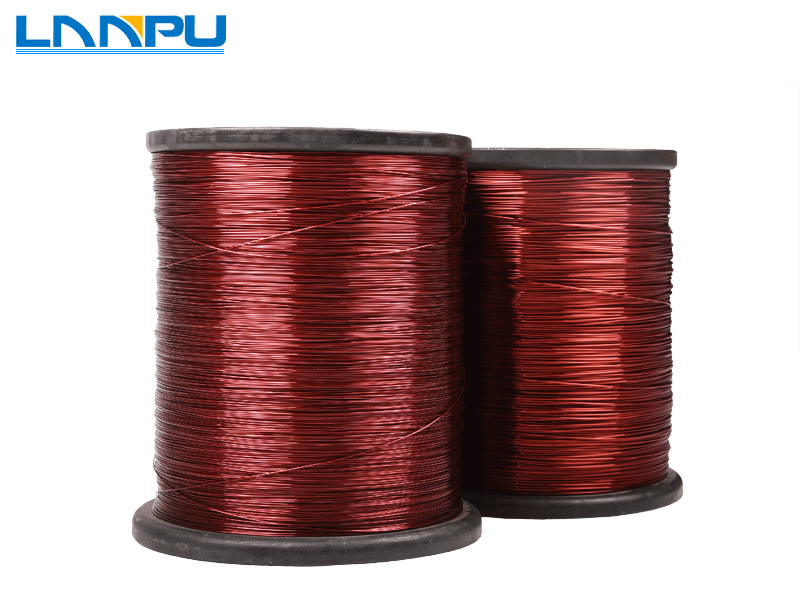

Enameled Copper Clad Aluminum Wire

  • Conductor diameter: 0.19–4.0 mm
  • Thermal Class: 130°C, 155°C, 180°C, 200°C
  • Standard: IEC, NEMA, GB, JIS
  • Color: Available colors: natural (uncolored), red, blue, green, and others on request.
  • Packaging: PT-25, PT-30, PT-60, 30kg - 150kg wooden / plastic spool, other options are available on request.

We're here to help:Easy ways to get the answers you need.

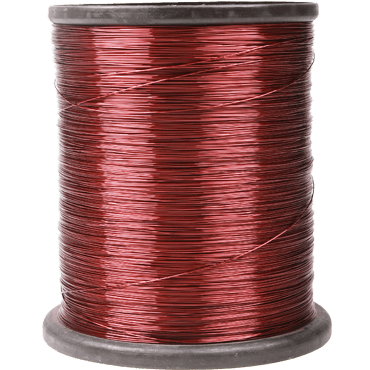

Enameled Copper Clad Aluminum Wire

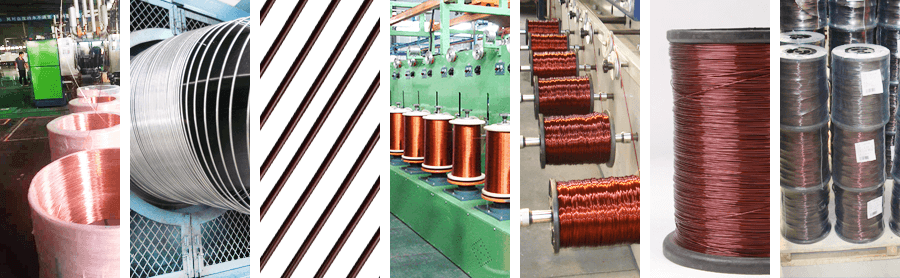

Production Process
Extruding Wire Drawing Ultrasonic Cleaning
Coating Curing Spooling

Size: 0.19-4.0mm
Thermal Class: 130°C, 155°C, 180°C, 200°C

Hot Products:
Class 130 Polyester Enameled  Copper Clad Aluminum Wire
Class 155 Modified Polyester Enameled Copper Clad Aluminum Wire
Class 180 Polyester-imide Enameled Copper Clad Aluminum Wire

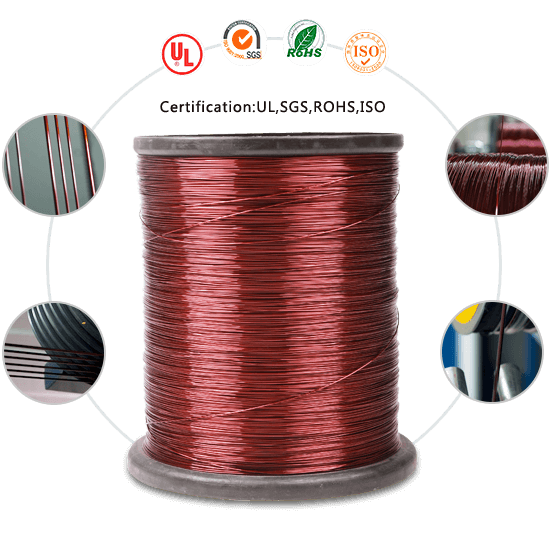

What Is Enameled Copper Clad Aluminum Wire (ECCA Wire)?
Enameled Copper Clad Aluminum Wire (ECCA Wire) is a winding wire made from a copper-clad aluminum conductor coated with electrical insulating enamel, and enamel insulation to provide a lightweight, cost-effective winding wire solution for electrical equipment manufacturers.

Production Characteristics

  • 1. ECCA has an aluminum core with copper cladding and an insulating enamel coating. Conductor resistivity depends on copper volume fraction and material quality; DC resistance also depends on conductor area and length.

  • 2. The copper surface can support suitable termination methods after enamel removal. Copper cladding does not make the enamel directly solderable. Use a qualified stripping and termination process; direct soldering requires a specifically qualified solderable enamel system.

  • 3. Density, winding weight and cost depend on copper cladding ratio, conductor dimensions and the winding design. Compare alternatives at the required resistance, current capacity and temperature rise.

  • 4. Available thermal classes: 130°C, 155°C, 180°C, 200°C. Thermal performance is determined by the qualified insulation system; aluminum does not automatically provide a higher thermal class than copper.

  • 5. Flexibility and winding performance depend on conductor temper, diameter, cladding integrity, enamel flexibility and processing conditions. Validate the selected ECCA wire for the intended winding.

  • Insulation: ELANTAS

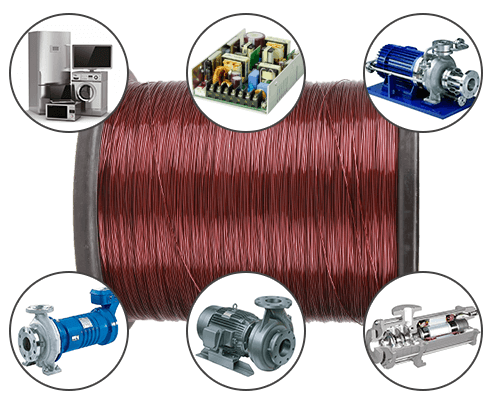

Application
Applications Of enameled copper clad aluminum wire
Typical applications include:
Instrument coils, selected motor windings and other electromagnetic coils where ECCA is qualified by the equipment design.
Confirm conductor resistance, termination method and insulation-system compatibility for the application.

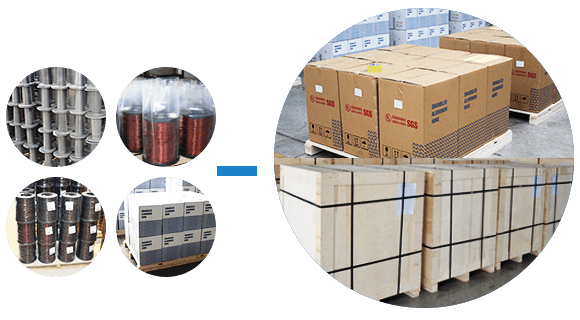

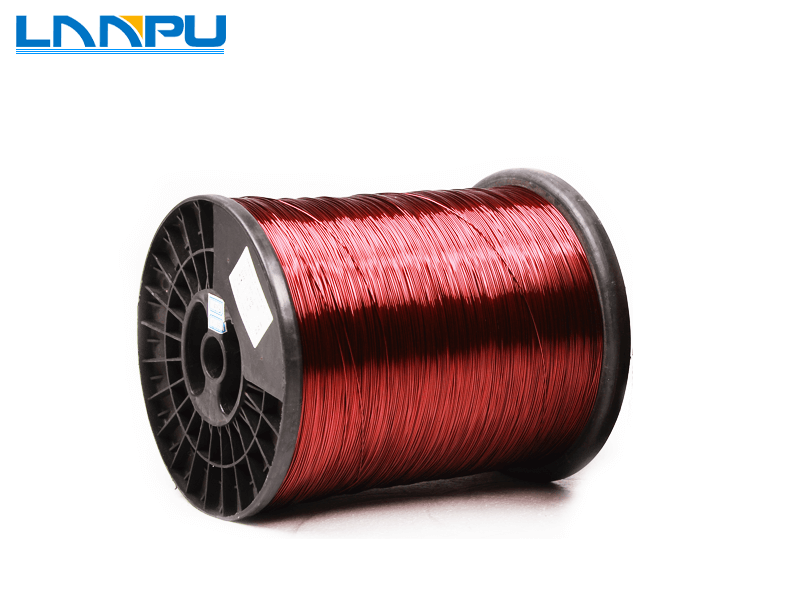

Packing
Plastic spool or wooden spool, ECCA wire lengths can be customized;
The usual spool specifications :
 PT-25,PT-30,PT-60,30kg - 150kg wooden / plastic spool, other options are available on request.
Packaging can be customized to customer requirements.
Main Technical Tests
Technical tests and acceptance limits depend on conductor diameter, copper cladding ratio, enamel build and insulation system and are agreed in the product specification.
Enameled Type Polyester or Solderable Polyurethane Modified Polyester or Solderable Polyurethane polyester-imide Or Solderable Polyurethane Polyamide-imide
Products type PEW/130 UEW/130 PEW/155 UEW/155 EIW/180 UEW/180 EIW/AIW/200
Temp Class 130 155 180 200
Insulation Grade Grade1/Grade2 Grade1/Grade2 Grade1/Grade2 Grade1/Grade2
Standard IEC,NEMA,JIS,GB or according to customers’ requirements
